Lecture 2: Getting Familiar with R

DATA 101: Making Prediction with Data

Dr. Irene Vrbik

University of British Columbia Okanagan

Introduction

• Today we will be getting more familiar with R¹

• To save space, I will often place the output to the right of the code

2 + 3 # --> output

[1] 5

• Recall HTML lecture notes will have a copy to clipboard:

• If you run the same code in your console, it will look like this:

> 2 + 3
[1] 5

• input is in box output starts with [1]
• The > symbol is called the prompt

1. When I say R, it should always be implied that I will be using R in RStudio

Calculations

R will follow the order of operations

100 - (3 * (2 + 1))^2

[1] 19

100 - (3 * 2 + 1)^2

[1] 51

100 - 3 * (2 + 1)^2

[1] 73

Note the syntax errors below.

20 - [3 * (2 + 4)]
## Error: unexpected '[' in "20 - ["

20 - (3 x (2 + 4))
## Error: unexpected symbol in "20 - (3 x"

BEDMAS, standing for Brackets, Exponents, Division/Multiplication, Addition/Subtraction

square brackets are reserved for indexing in R (more on that later)

R Objects

• In R, an object is a fundamental data structure that represents a value or a collection of values.

• Objects typically have a specific data type.

• R provides various structures of objects, including vectors, matrices, data frames, lists, factors, scalars, functions.

• Objects are “assigned” to variable names using either the equal sign (=) arrow or (->) as the assignment operator.

four <- 4 # same as --->

four = 4

• Everything in data is an object (thought not all objects are the same!)

• An R object is a data structure that encapsulates a value or a set of values, typically with specific data type and attributes, and is defined within the R programming language. Objects can be created, manipulated, and used in various operations and computations in R.

Naming variables

Variable names …

• cannot contain spaces or special characters other than an underscore (_) and period (.)
• can contain numbers,
• must begin with a letter

## allowed
data101
no_problem
camelCase
data.100

## Not allowed
4you
data-101
for

## not recommended
print
var

⚠️ You should avoid using function names as variable names to avoid confusion.

Updating Variables

If we need to update a variable we can perform the same logical operator to change its value.

int <- 3
num <- int + 6.1

You call¹ the variable by name

num # or print(num)

[1] 9.1

print(num)

[1] 9.1

print(c(int, num))

[1] 3.0 9.1

Notice when you assign something to an object, R does not automatically print the result to the the screen.

It’s no coincidence we call these “variables”; their values can change

1. in Rmd files you’ll need to use print()

Data Types

Here is a list of some important data types used in R:

1. Integer (whole numbers)
2. Doubles (real numbers)
3. Character
4. Logical (TRUE / FALSE, 0 / 1)
5. Factor ()
6. NA: (indicates a missing element)

data types are the classifications we give different kinds of information pieces.

Data types in R

int <- 2L         # integer
num <- 2          # numeric
my_str <- "2"     # string/character
char <- 'charlie' # double/single quotes
logical <- TRUE   # T/F note CAPITALS
missing <- NA     # Not Available

N.B. single or double quotes are allowed for strings.
There are NO quotes on TRUE/FALSE and NAs

The typeof() function returns the data type of a variable …

typeof(int)

[1] "integer"

typeof(num)

[1] "double"

typeof(my_str)

[1] "character"

typeof(logical)

[1] "logical"

typeof(missing)

[1] "logical"

NA can be consider numeric as well

Structures

Here is a list of some important structures used in R:

• Vectors

• Scalars

• Matrices

• Data Frames

• Lists

• Factors

• Functions

Vectors

• Vectors are the simplest data structure in R.

• The c() function can be used to build a vector which is simply a sequence of elements.

\[\begin{equation} \texttt{general_vec <- c(element_1, element_2, ..., element_n) } \end{equation}\]

• They can store a sequence of values of the same data type, such as numeric, character, logical, or complex values.

• That is, vectors cannot contain elements of different data types (click to review what those data types were)

Vector examples

e.g. create a vector with the numbers 1 through 6

my_vec <- c(1,2,3,4,5,6) # this is a vector of length 6
length(my_vec)

[1] 6

A short hand way of doing this would be do use the colon (:)

my_vec <- 1:6             # [1] 1 2 3 4 5 6
count_down <- 5:0         # [1] 5 4 3 2 1 0

It is common to use terms like “numeric vector,” “character vector,” or “logical vector” to emphasize the data type.

numbers <- c(1,4,-9, 5.5)                   # numeric vector
my_strs <- c("a", "bee", "see you later")   # character vector
log_vec <- c(TRUE, FALSE, FALSE, TRUE, F)   # logical vector

notice how R will know F = False in this case

when there is no ambiguity T/F can be used in place of TRUE/FALSE

Vector Indexing

You can access elements of a vector using square brackets []

numbers <- c(3,4,-9, 5.5, 10)

# extract the FIRST element
numbers[1]

[1] 3

#  extract 2nd & 4th elements
numbers[c(2, 4)]

[1] 4.0 5.5

# extract all but the third
numbers[-3]

[1]  3.0  4.0  5.5 10.0

# get 1st-4th element (inclusive)
numbers[1:4]

[1]  3.0  4.0 -9.0  5.5

⚠️ It is worth pointing out that some programming languages (e.g. Python) start their index at 0 instead of 1

R uses 1-based indexing, meaning the first element is at position 1.

Vector Indexing (cont’d)

log_vec
numbers

[1]  TRUE FALSE FALSE  TRUE FALSE
[1]  3.0  4.0 -9.0  5.5 10.0

What do you think this will do?

numbers[log_vec]

[1] 3.0 5.5

This will extract the elements from numbers for which the corresponding element in log_vec is equal to TRUE

⚠️ Warning: R will not produce a warning if the vectors are not of the same length!

numbers[c(TRUE,FALSE)]
numbers[rep(TRUE, TRUE, TRUE,
            TRUE, TRUE, TRUE,
            TRUE, TRUE, TRUE)]

[1]  3 -9 10
[1]  3.0  4.0 -9.0  5.5 10.0

Scalars

A single value is technically a vector of length 1;

x <- 0 ; is.vector(x)

[1] TRUE

length(x)

[1] 1

typeof(x)

[1] "double"

I can combine vectors together using c()

longer_vec <- c(x,my_vec)
print(longer_vec)

[1] 0 1 2 3 4 5 6

💡 Note: the semicolon (;) used to separate multiple R expressions on the same line. See is.vector() for help page on this function.

Coercion

Where appropriate, you can convert objects of one data type to another using as. followed by the data type

x <- 1; as.character(x)

[1] "1"

as.logical(x)
# 0 = FALSE, 1 = TRUE

[1] TRUE

If different data types are combined together, R will try and guess whats the best choice to store them as.

v1 <- c(1, "hi!", TRUE)
v1; typeof(v1)

[1] "1"    "hi!"  "TRUE"
[1] "character"

v2 <- c(8,4,TRUE,3,FALSE)
v2; typeof(v2)

[1] 8 4 1 3 0
[1] "double"

• If a character string is present in an atomic vector, R will convert everything else in the vector to character strings.
• If a vector only contains logicals and numbers, R will convert the logicals to numbers; every TRUE becomes a 1, and every FALSE becomes a 0,
• “see you later” can’t be converted to logical or numeric, but 1, and TRUE can easily be converted to a string

You can read more about R’s coercion behavior here

Matrices

• Matrices store values in a two-dimensional array

• One way of creating a matrix is to supply a vector to the matrix() function; see ?matrix or click the hyperlinks

matrix(data = NA, nrow = 1, ncol = 1, byrow = FALSE)

💡 The parameter values specified in the documentation represent default values. These values are used by the function when the caller does not provide a specific argument value for that parameter.

Matrix examples

my_vec

[1] 1 2 3 4 5 6

matrix(my_vec) # column vector

     [,1]
[1,]    1
[2,]    2
[3,]    3
[4,]    4
[5,]    5
[6,]    6

matrix(my_vec, ncol = 2)

     [,1] [,2]
[1,]    1    4
[2,]    2    5
[3,]    3    6

matrix(my_vec,ncol = 2,byrow = T)

     [,1] [,2]
[1,]    1    2
[2,]    3    4
[3,]    5    6

# extra numbers get thrown away
matrix(my_vec, nrow = 2,ncol = 2)

     [,1] [,2]
[1,]    1    3
[2,]    2    4

# some numbers recycled
matrix(my_vec, nrow = 3,ncol = 5)

     [,1] [,2] [,3] [,4] [,5]
[1,]    1    4    1    4    1
[2,]    2    5    2    5    2
[3,]    3    6    3    6    3

# can work with other data types
matrix(my_strs)

     [,1]
[1,] "a"
[2,] "bee"
[3,] "see you later"

💡 Notice how i can use T instead of TRUE

• how would you make a row matrix

matrix(my_vec, nrow = 1)

     [,1] [,2] [,3] [,4] [,5] [,6]
[1,]    1    2    3    4    5    6

Matrix indexing

You can index matrices using square brackets [ ] to extract specific elements, rows, or columns from the matrix.

(mat <- matrix(my_vec, nrow = 2)) # ncol = 3 need not be specified

     [,1] [,2] [,3]
[1,]    1    3    5
[2,]    2    4    6

Extract the element in the 1st row and third column

mat[1,3]

[1] 5

Extract the entire first row

mat[1,]

[1] 1 3 5

Extract the entire third column

mat[,3] # returns a 1D vector

[1] 5 6

Factors

• In R, a factor is a data type used for categorical (aka nominal) data (e.g. marital status: “Married,” “Single,” “Divorced”).

• That is, factors are used to represent data that can take on a limited, fixed set of distinct values or categories.

• Notably these categories do not have any inherent order or ranking among them.

• While it may look like character data, note the differences in the following output.

Nominal data, also known as nominal scale data, is a type of categorical data that represents categories or labels for items without any inherent order or ranking among them.

Factor Examples

eyecolor <- c("brown", "hazel", "brown", "blue", "blue")  # char vec
marrital_status <- c(1, 2, 2, 3)                          # num vec

To convert the character vector above to a factor, use:

factor(eyecolor)

[1] brown hazel brown blue  blue
Levels: blue brown hazel

Ofttimes, categorical data will be codified using numbers. They can be coerced into a factor type using:

factor(marrital_status) # or

[1] 1 2 2 3
Levels: 1 2 3

#  1 = married, 2 = single, 3 = divorced
(marrital_status <- factor(marrital_status, levels = c(1,2,3),
       labels = c("Married", "Single", "Divorced")))

[1] Married  Single   Single   Divorced
Levels: Married Single Divorced

• note the reassignment of the marrital_status vector
• not the () around it so that it will print

Factor Examples (cont’d)

If we know there is another category that we didn’t happen to have in our vector, we can let R know of it using:

(more_eyecolors <- factor(eyecolor,
                         levels = c("hazel", "blue", "brown","green")))

[1] brown hazel brown blue  blue
Levels: hazel blue brown green

In addition, if we know that some categories might be duplicated using different labels we can merge them using:

x <- c("Man", "Male", "Man", "Lady", "Female")
(xf <- factor(x, levels = c("Male", "Man" , "Lady",   "Female"),
                 labels = c("Male", "Male", "Female", "Female")))

[1] Male   Male   Male   Female Female
Levels: Male Female

maps from 4 different values to only two levels

Lists

• So far, all of the previous structures required that all the elements are of the same data type.

• In R, a list is a versatile and flexible data structure that can hold elements of different data types, including other lists, vectors, matrices, data frames, and even functions.

• Lists are commonly used to store and manage heterogeneous data or complex data structures.

• Elements within the list can be named for convenience

List examples

numbers <- c(1,4,-9, 5.5)                   # numeric vector
my_strs <- c("a", "bee", "see you later")   # character vector

my_list <- list(numbers, c("Hello", "World!"), c(TRUE, FALSE))
named_list <- list(numbers = numbers, msg = c("Hello", "World!"),
                   logicals = c(TRUE, FALSE))

my_list

[[1]]
[1]  1.0  4.0 -9.0  5.5

[[2]]
[1] "Hello"  "World!"

[[3]]
[1]  TRUE FALSE

named_list

$numbers
[1]  1.0  4.0 -9.0  5.5

$msg
[1] "Hello"  "World!"

$logicals
[1]  TRUE FALSE

vectors within the list need not be the same length

List indexing

• You can access elements within a list using double square brackets [[]] or single square brackets [ ] and specify either the element’s position or its name.

• In R, the dollar sign ($) operator is used to access elements within a list (or data frame) by their names.

• Each element of the list will be a vector which can then be indexed using the single square brackets [] as discussed in Vector Indexing

List Indexing Examples

The following are equivalent for returning the first element of the list, i.e. a vector.

named_list[[1]]
named_list$numbers
named_list[['numbers']]
num_vec <- named_list[[1]]

[1]  1.0  4.0 -9.0  5.5
[1]  1.0  4.0 -9.0  5.5
[1]  1.0  4.0 -9.0  5.5

The resulting vector can then be indexed

num_vec[3]

[1] -9

Which is the same as:

named_list[[1]][3]

[1] -9

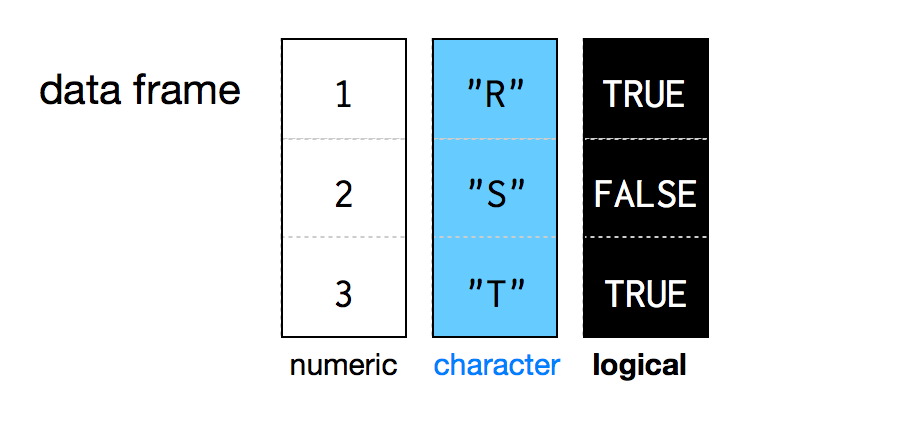

Data Frames

• Data frames are the two-dimensional version of a list.
• They provide an ideal way to store data sets which will most likely have data of different types.
• A data frame in R is much like an Excel spreadsheet.
• Like list, data frames store a sequence of vectors.
• Unlike lists, these vectors must be the same length

Visualizing Data Frames

Data frames store data as a sequence of columns. Each column can be a different data type. Every column in a data frame must be the same length. Source of image: Hands-on Programming with R

unlike lists, the vectors in a data frame must all be the same length

Data Frame Examples

To create¹ a data frame we can supply data.frame() with any number of vectors, each separated with a comma.

(df <- data.frame(
  face = c('ace', 'two', 'six'),
  suit=c('clubs','clubs','clubs'),
  value = c(1, 2, 3)))

  face  suit value
1  ace clubs     1
2  two clubs     2
3  six clubs     3

• In this example, we have created a data frame named df with three columns: face, suit, and value.

• Each vector should have the same length, as each element corresponds to a row in the data frame.

• The c() function is used to create vectors of data for each column.

1. Next lecture we’ll see how to importing data rather than type it

Object types vs. class

Each data frame is a list with class data.frame.

typeof(df)

[1] "list"

class(df)

[1] "data.frame"

In R, both typeof() and class() are functions used to examine the characteristics of objects

• typeof() is concerned with the internal representation of the object, focusing on the low-level data type.

• class() is concerned with how the object behaves and how it interacts with other objects and functions in R

typeof(marrital_status)

[1] "integer"

class(marrital_status)

[1] "factor"

class() returns a character vector indicating the “class” or “classes” of the object in terms of its high-level data structure or object-oriented programming (OOP) class. It provides information about how the object is treated in R, especially in the context of inheritance and methods.

• e.g. plot() will behave differently for different classes in R
• e.g. i can’t add factors together, even though they are saved as integers

Data Frame Indexing

To access columns of the data frame you can either use [] square brackets of the $ operator

Columns

df[,1] # same as

[1] "ace" "two" "six"

df$face

[1] "ace" "two" "six"

df[c(1,3)]

  face value
1  ace     1
2  two     2
3  six     3

Rows

df[1,]

  face  suit value
1  ace clubs     1

df[c(1,3),]

  face  suit value
1  ace clubs     1
3  six clubs     3

Viewing Data Frames

To invoke a spreadsheet-style viewer of your data in a the Source panel of RStudio, you can execute:

View(df)

The str() function gives you a quick overview of your data

str(df)

'data.frame':   3 obs. of  3 variables:
 $ face : chr  "ace" "two" "six"
 $ suit : chr  "clubs" "clubs" "clubs"
 $ value: num  1 2 3

str (Compactly Display the Structure of an Arbitrary R Object) provides information about the data frame including:

• its data type ('data.frame'),

• the number of rows (3 obs.),

• the number of variables (3 variables),

• the variable names (Name, Age, City), and

• their respective data types (chr for character, num for numeric).

  It gives you a quick overview of the structure of your data, which is useful for data exploration and debugging.

Functions

• A function is a self-contained block of code that performs a specific task or set of tasks.

• There are many available functions in R

• We have used a few functions¹ already: c() and print()

• To access the help file for any function use the ? operator followed by the function name. For example

?print

1. I will aways use () to make it clear that the object is a function

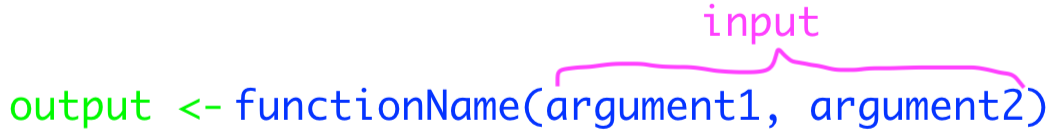

In(put)s and out(put)s of functions

Functions typically accept input values, called arguments or parameters, perform operations on them, and return a result.

Output of a function can either be printed to the console or assigned to a variable.

Function Examples

numbers <- c(3.0,  4.0, -9.0, 5.5, 10.0); max(numbers)

[1] 10

sort(numbers)

[1] -9.0  3.0  4.0  5.5 10.0

date() # no arguments

[1] "Tue Sep 19 08:40:57 2023"

R comes with more sophisticated functions like those that can randomly sample data from a Normal distribution.

rnorm(6) # samples random numbers from the standard normal distribution

[1]  0.5530039 -0.3726930 -0.1572766 -0.4543976 -0.5384378  0.6014636

Later in the course we’ll see functions that can preform clustering, make predictions, produce visualizations… all key tasks for a data scientist

User Defined Functions

Functions are designed to be reusable and modular.

👍 Rule of Thumb: if you written the same code more than twice, consider writing a function

Here’s the general syntax for creating your own function:

functionName <- function(parameters) {

  code to execute on pararmeters

}

The same naming rules for variables apply to functions

E.g. create a function that counts the number of unique elements in a vector:

lu <- function(x){
  length(unique(x))
}
names <- c("sara", "sara", "sara", "peter", "peter", "irene")
lu(names)

[1] 3

so rather than having one really long function to do cluster, we usually break down a complex system or program into smaller, self-contained, and independent modules or components.

In the context of functions, I will be using the terms parameters and arguments interchangeably

Creating vectors using seq()

A common way to make vectors is to use the seq() function:

seq(from, to, by=, ...) # default

• The first argument this function is expecting is from, the starting value of the sequence.
• The second argument is to, the ending value of the sequence
• The third argument is by which sets the increment of the sequence.
• ... indicates that there are alternative arguments that may be passed to this function. These are described in the Arguments section of the help file which can access using ?seq

to must be bigger than from

seq() Examples

If you arrange your arguments in the order R expects, you do not need to specify the argument name.

seq(from = 1, to = 9, by = 2)     # same as
seq(1, 9, 2)                      # [1] 1 3 5 7 9

If you rearange them or utilize alternative (non-default) arguments you need to explicitly provide the argument name.

seq(0, 50, length.out = 11)  # NOT the same as

 [1]  0  5 10 15 20 25 30 35 40 45 50

seq(0, 50, 11) # same as seq(0, 50, by = 11)

[1]  0 11 22 33 44

If we didn’t specify length.out, R would have assumed it was the default third argument: by

Creating vectors using rep()

A common way to make vectors is to use the rep() which replicates the values in x

rep(x, ...) # see documentation for what can be used in ...

• times an integer-valued vector giving the (non-negative) number of times to repeat each element if of length length(x), or to repeat the whole vector if of length 1.
• length.out non-negative integer. The desired length of the output vector.
• each non-negative integer. Each element of x is repeated each times.

rep() Examples

Some useful examples from the help file:

rep(1:4, 2)

[1] 1 2 3 4 1 2 3 4

rep(1:4, each = 2)

[1] 1 1 2 2 3 3 4 4

rep(1:4, c(2,1,2,1))

[1] 1 1 2 3 3 4

💡 Don’t overlook the Examples at the end of a help file. Sometimes they are more useful than the descriptions.

here seeing the examples are more useful than reading the documentation

Vector Functions

There are a number of useful functions you can apply to vectors. Just a few examples:

vec <- c(3,4,-9,5.5,5.5,10)
log(vec) # performs element-wise calculations

[1] 1.098612 1.386294      NaN 1.704748 1.704748 2.302585

log(abs(vec)) # abs for absolute values

[1] 1.098612 1.386294 2.197225 1.704748 1.704748 2.302585

summary(vec)

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
 -9.000   3.250   4.750   3.167   5.500  10.000

unique(vec)

[1]  3.0  4.0 -9.0  5.5 10.0

var(vec)
sd(vec)
mean(vec)
sum(vec^2)

[1] 41.26667
[1] 6.423914
[1] 3.166667
[1] 266.5

Vector functions work similar to functions in Excel

Importing Packages

• Part of R’s popularity is due to its rich collection of packages.

• A package is a collection of functions, data sets, and documentation bundled together into a single unit.

• To use an R package, you first need to install it using install.packages()

• Load it into your R session using library()

# Install the ggplot2 package (only needed once)
install.packages("ggplot2")

# Load the ggplot2 package into the current R session
library(ggplot2)

Akin to a Python library

Packages are a fundamental component of the R programming ecosystem and serve several important purposes:

• distribution: share with others
• documentation: create vignettes and help files
